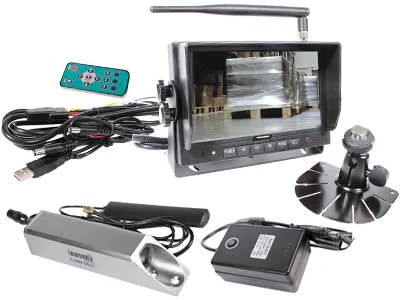

Digitalt Trådløst Gaffeltruck Kamerasystem 12/24V (1705-00012)

Produktbeskrivelse:

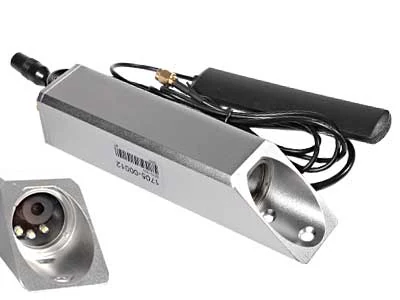

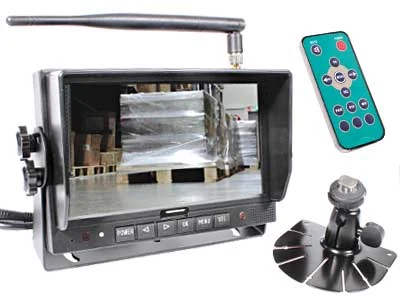

Digitalt Trådløst Gaffeltruck Kamerasystem 12/24V (1705-00012) leverer et komplet bakkamerasæt med knivskarp billedvisning, nem installation og pålidelig funktion i al slags vejr. Perfekt til sikker manøvrering af store køretøjer og trailere. Specifikationer: wireless forklift camera, magnetic: easy to install to fork arm - powered by rechargeable battery pack, 7" display, auto pairing, wireless transmission range up to 100m, 4-channel inputs: supports dual screen mode, single screen mode and automatic display mode loop switching, auto channel scanning; each channel can be individually set to scan on or off, built-in recorder (support 128GB Micro SD card), real-time recording and video playback. CAMERA: wireless: operation frequency 2400-2483.5MHz, IP69K - 10G - metal shell: durable and reliable, CMOS, PAL/NTSC, 756x504px, internal sync, scanning system: 2:1 Interlace, video output: 1.0Vp-p 75Ω, 1-3m nattesyn, minimum Illumination 0.1Lux, line of sight range 100m, lens f=6.0mm, viewing angle 45°, gamma consumption: 0.45, auto AGC, S/N Ratio better than 46.5dB, auto white balance, electronic shutter: auto 1/60 (NTSC) / 1/50(PAL) – 1/100,000 seconds, auto BLC, video code MPEG4, frame rate PAL: 25f/s, NTSC: 30f/s, spread Spectrum FHSS, delay 120ms, RF Bit Rate 4Mbps, operating temperature –20℃ ... +70℃ RH95%MAX, storage temperature –30℃ ... +80℃ RH95%MAX, power supply 10-32VDC — BATTERY PACK for camera, rechargeable, 8700mAh – 31.32Wh, charging voltage 5-16V: usb-cable, cable with wires and 240VAC power supply included, charging time 12h (5V) - 4h (12V), discharging time (@160-180mA): 12-14h, charging temp -20°C ... +45°C, discharging and storage temp --20°C ... +60°C, IP69K, magnetic mount, 110.5x64.5x40.7mm, 400g — DISPLAY: 7", wireless: operating frequency 2400-2483.5MHz, 800x3x480 px, 500:1, 400 cd/m², 16:9, viewing angle U: 50 / D: 70, R/L: 70, remote control, 4-channel, decompression form MPEG4, receiving sensitivity -89 dBm, modulation 2.4G FSK/GFSK, storage capacity: Micro SD Card Max. 128G, power supply 10-32VDC, power consumption max. 6W, loudspeaker: 1.5W/8Ω, operating: -20~+70ºC, RH 90%, storage: -30~+80℃, RH 90%, delivered with U-bracket and stand for center fixing.

Specifikationer:

Producent

Startax

Varenummer

1705-00012

Spænding

10-32V

Kapslingsklasse

IP69K (højtryks- og vandtæt)

Betragtningsvinkel

45° vidvinkel

Tilslutning

4-pin skruestik

Transmission

Digital trådløs 2.4 GHz

Beskyttelse

Motoriseret automatisk beskyttelseslukker

Kabellængde

20 meter

Garanti

12 måneder

Anvendelse:

• Komplet bakkamerasystem til varebiler, autocampere, lastbiler og landbrugsmaskiner
• Sikker manøvrering, bakning og parkering under trange pladsforhold
• Hestetrailere, maskintrailere og campingvogne (trådløs eller kablet overførsel)

Garanti:

12 måneder
